Product Details:
PondMAX PA-Series pond aeration kit is a complete, ready-to-use solution for keeping garden and koi ponds healthy and well oxygenated. Available in two sizes for ponds up to 750 or 1,500 gallons, each kit includes a quiet, energy-efficient air pump, airline tubing, weighted self-righting air stones, and check valves — everything needed to add reliable aeration to a new or existing pond.
Key Features

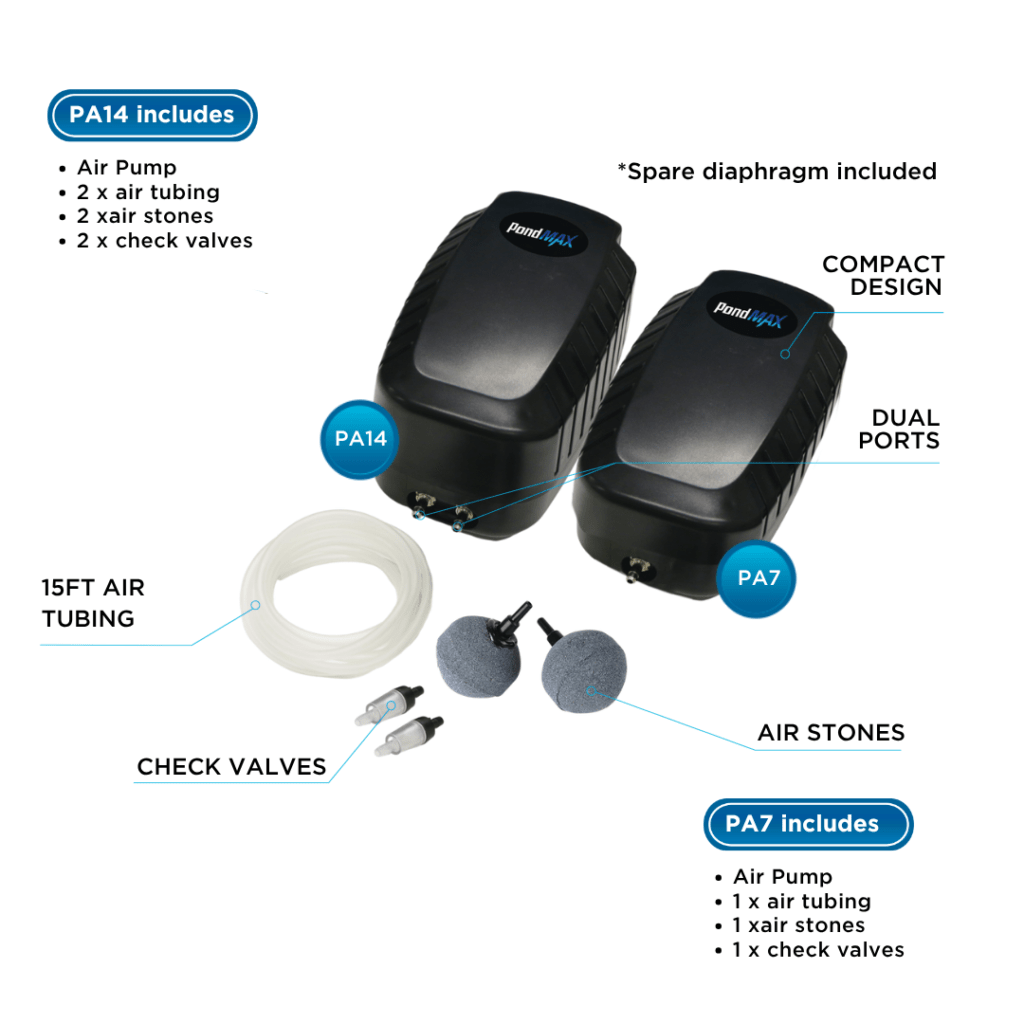

Complete pond aeration kit — pump, hose, air stones, and check valves all included

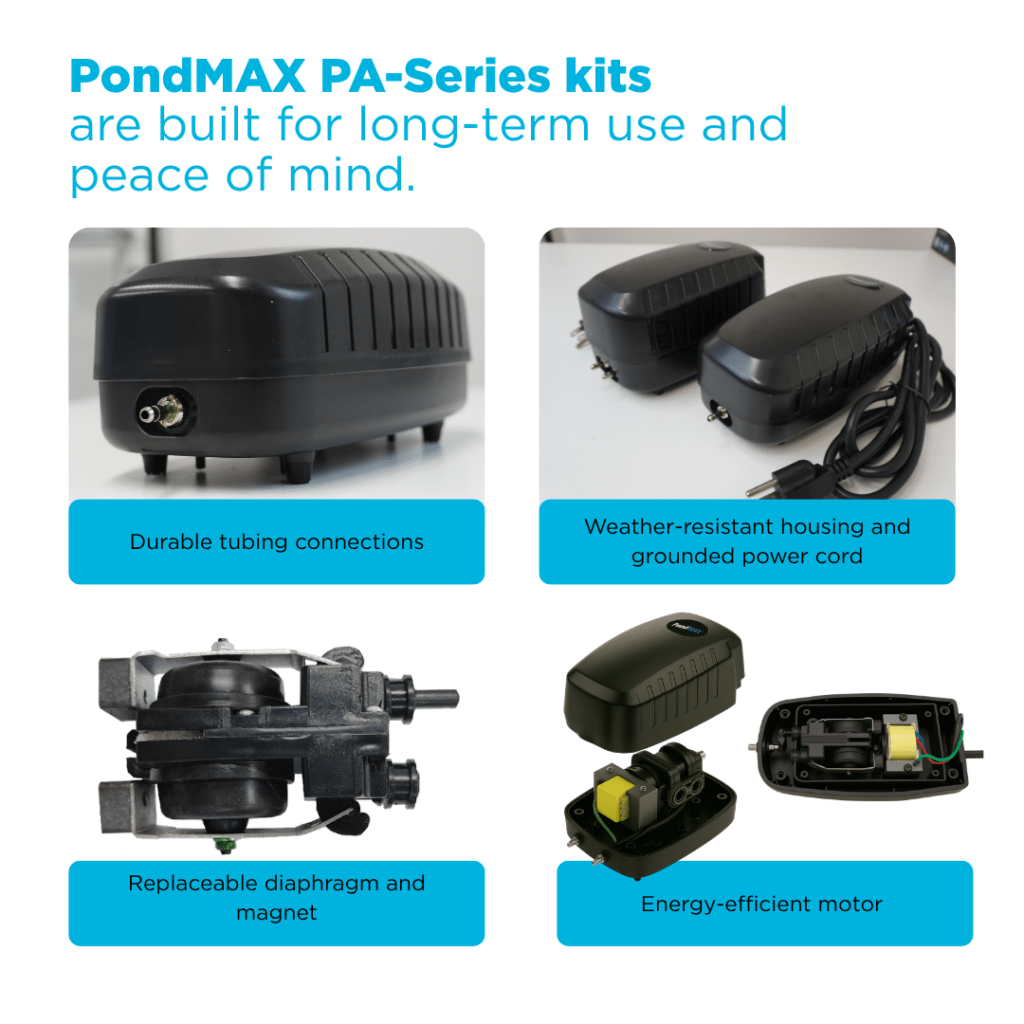

Quiet, reliable operation — advanced air-compressing and damping system with a multi-level muffler for minimal noise
Durable, compact, weather-resistant housing built for long-term outdoor use
Steady, consistent airflow — special artificial rubber diaphragm keeps output and pressure stable
Easy to maintain — replacement diaphragms, air filters, and air stones available
PondMAX PA-Series Aeration Kits are a complete pond aeration kit built for keeping ponds healthy and oxygenated.
Designed for ponds up to 1,500 gallons, these kits include everything needed — air pump, airline tubing, air stones, and check valves — so setup is simple and performance is reliable. The included energy-efficient air pump delivers consistent airflow while running quietly, thanks to an advanced air-compressing system, damping system, and multi-level muffler. A special artificial rubber diaphragm helps keep air output and pressure steady over time. This pond air pump is compact and built for a long service life, making it a solid fit for backyard ponds and water gardens. Each kit comes with weighted, self-righting air stones that stay in place at the bottom of the pond and are easy to clean, helping maintain lasting efficiency.
With up to 30 feet of airline tubing per outlet, diffusers can be positioned wherever circulation is needed most, with best performance at a depth of 2–4 feet. Compact, weather-resistant, and low-maintenance, this pond aerator pump kit is designed for long-term use with minimal upkeep — replacement diaphragms, air filters, and air stones are all available to keep it running for years to come.
How it works
- The air pump draws in ambient air and compresses it using a rubber diaphragm system.
- Compressed air is pushed through airline tubing connected to the pump’s outlet(s).
- A check valve in the line prevents water from siphoning back into the pump when it’s switched off.
- Air travels through the tubing to a weighted, self-righting air stone positioned on the pond floor.
- The air stone diffuses the air into a steady stream of fine bubbles, increasing surface agitation and oxygen exchange.
- Rising bubbles help circulate water and prevent stagnant, oxygen-poor zones, supporting fish health and beneficial bacteria.
How to Install (View More details in our Instruction Manual)
Before installing: always disconnect the power supply before installation or maintenance, keep the pump in a dry location, and never submerge it in water.
1. Choose a dry, protected spot for the air pump — ideally elevated above the pond’s high-water line and shielded from direct rain. The pump itself must never be submerged.
2. If the pump must be positioned below the pond’s water level, install the included check valve in the air line close to the pump. This prevents water from siphoning back into the pump when it’s switched off.

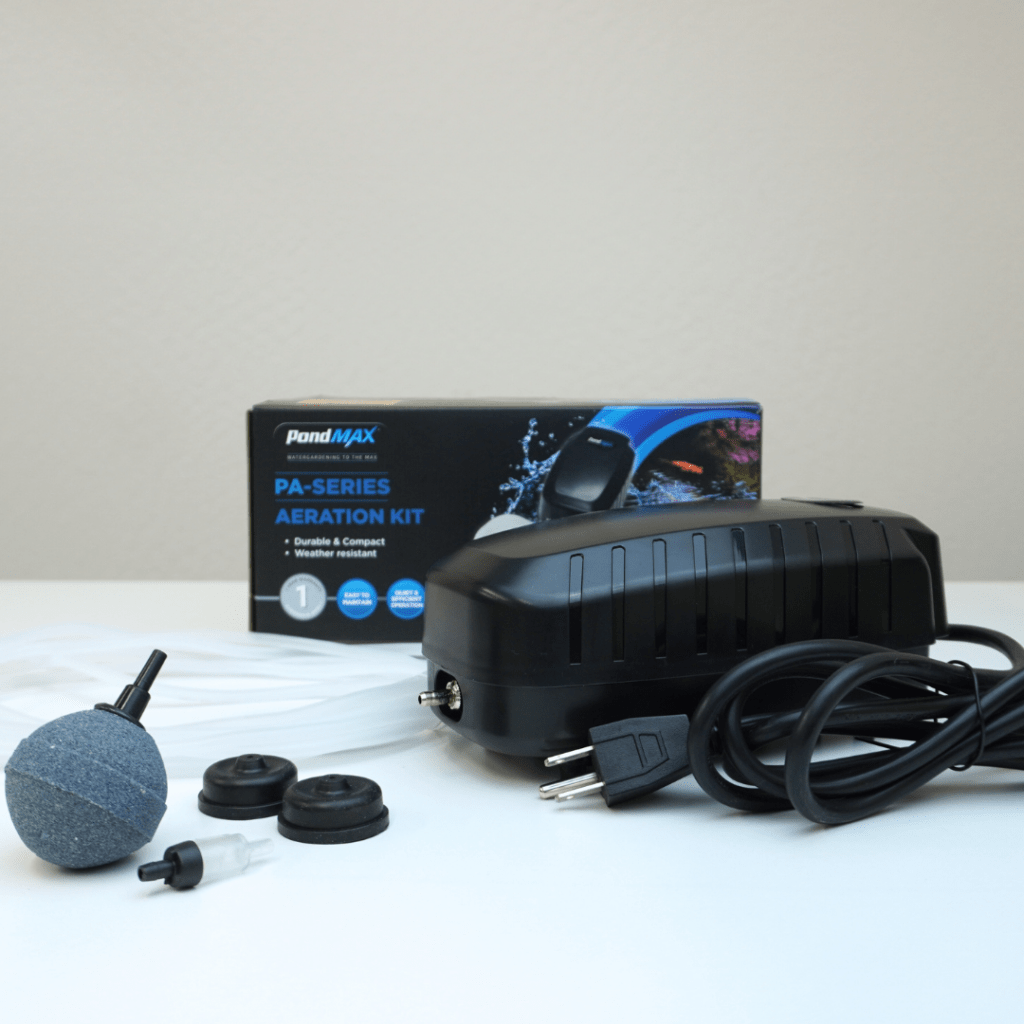

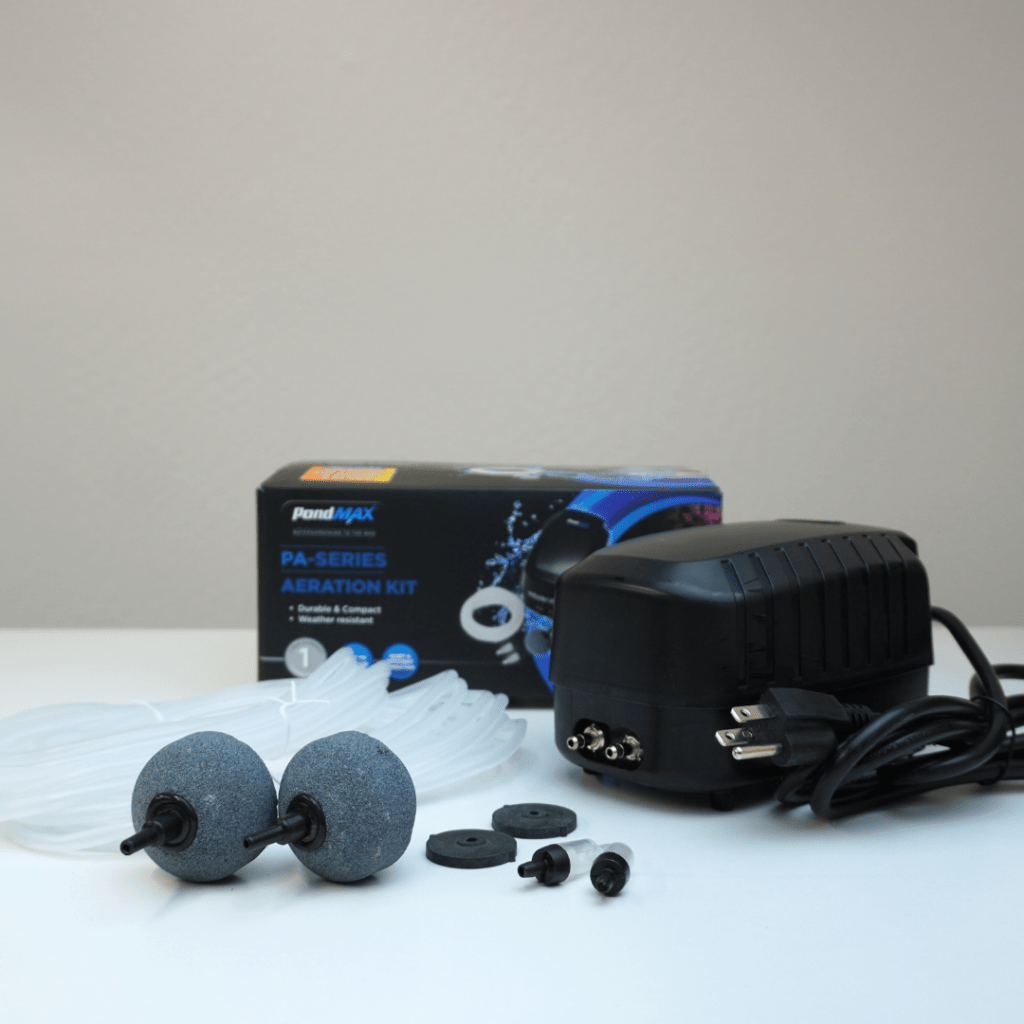

3. Connect the airline tubing to the pump’s outlet barb(s). The PA7 has a single outlet with one 15 ft hose; the PA14 has two outlets, each fitted with its own 15 ft hose for dual-point aeration.
4. Run the tubing to the pond, keeping it away from sharp edges, foot traffic, and areas where it could be pinched or damaged.
5. Attach a weighted, self-righting air stone to the free end of each hose. The weighted base keeps the stone upright and in place on the pond floor.
6. Position each air stone at a depth of 2–4 feet for best performance, spacing multiple stones around the pond to maximize circulation.
7. Plug the pump into a nearby GFCI-protected outlet and confirm a steady stream of bubbles is rising from each air stone.
8. Check airflow periodically, and clean the air stones and hose regularly. Keep spare diaphragms and an air filter on hand for routine maintenance.
Not sure what fits? Try Search or visit
Support for setup guides.
Need parts? Check the Parts category
for replacements that match your model.
