Product Details:
PondMAX Euro FP Series Submersible Pump is a professional-grade, low-maintenance pond pump designed for pressurized filtration systems, waterfalls, and other freshwater pond applications. The debris-handling design uses a large intake screen for in-pond use, with dual-direction pump discharge on applicable models. Eight models are available from 550 to 3,950 GPH, each with a 32 ft power cord and a 3-year warranty.

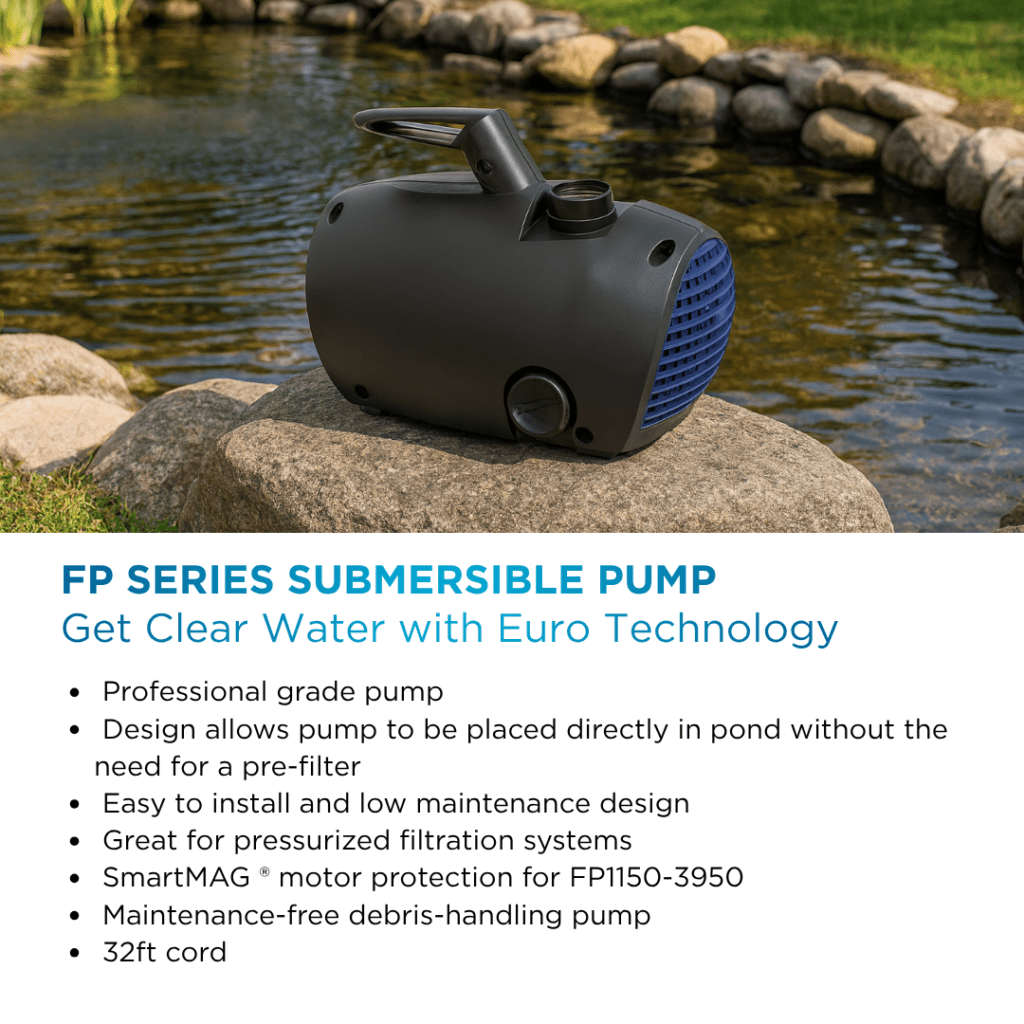

FEATURES
Professional grade pump — Built for pond filtration, waterfalls, and freshwater water-feature applications.
Low maintenance design — Rotating parts are accessible for routine cleaning, and the impeller uses a wear-resistant ceramic shaft.
Large intake screen — Suitable for in-pond use and helps protect the pump intake from larger debris.
Dual direction pump discharge — Provides flexible discharge positioning on applicable models; FP1150, FP1550, and FP2050 allow the volute to be positioned at 90° for the required setup.
32 ft power cord — Provides additional placement flexibility around ponds and filtration systems.
SMARTMAG® motor protection — FP1150 through FP3950 respond automatically to low-water or blocked-impeller conditions. FP550 and FP750 use a self-resetting thermal protector.
Multistage threaded hose-tail adapters — Allow connection to hard pipe or flexible hose in multiple diameters, depending on model.
Made in Europe
New debris-handling pumps come with a large intake screen and are suitable for in-pond use. The PondMAX Euro FP Series combines a professional-grade pump with a low-maintenance design, dual-direction pump discharge on applicable models, and a 32 ft power cord.

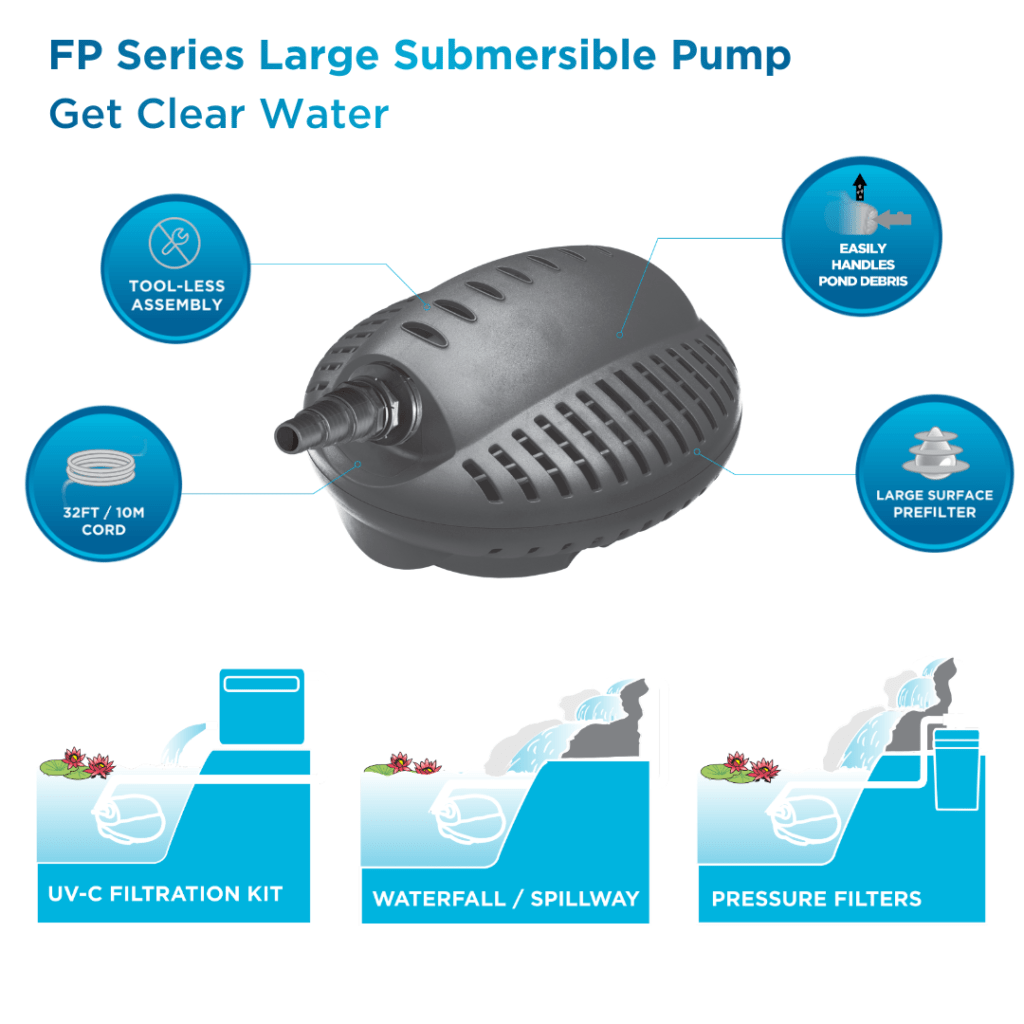

PondMAX Submersible Pumps work great for pressurized filtration systems and freshwater ornamental ponds. The FP Series can be used with filters and waterfalls, and the pumps are equipped with multistage threaded hose-tail adapters that allow connection to hard pipe or flexible hose of various diameters.
Models FP550 through FP2050 can operate in or out of water. For external applications, the pump intake must remain below the water level. Models FP1150, FP1550, and FP2050 also allow the volute to be angled at 90° so the pump can be positioned as required. For models FP2450 through FP3950, the supplied instruction manual specifies completely submerged operation.
Models FP1150 through FP3950 feature SMARTMAG® motor protection. If there is a lack of water or the rotor or impeller becomes blocked, the pump recognizes the problem, turns off, and attempts to restart. If the condition remains after the specified restart attempts, the pump shuts off completely until it is unplugged and the cause of the problem is corrected. FP550 and FP750 are equipped with a self-resetting thermal protector.

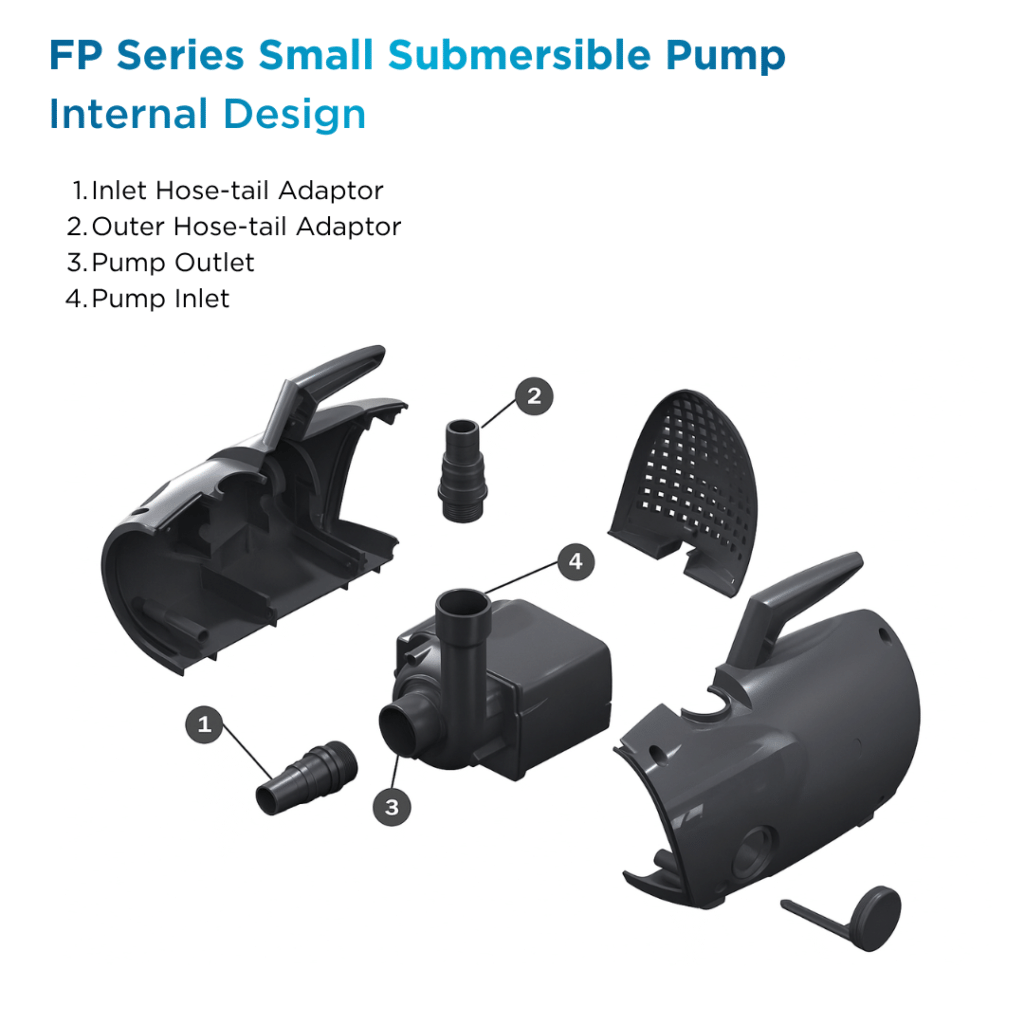

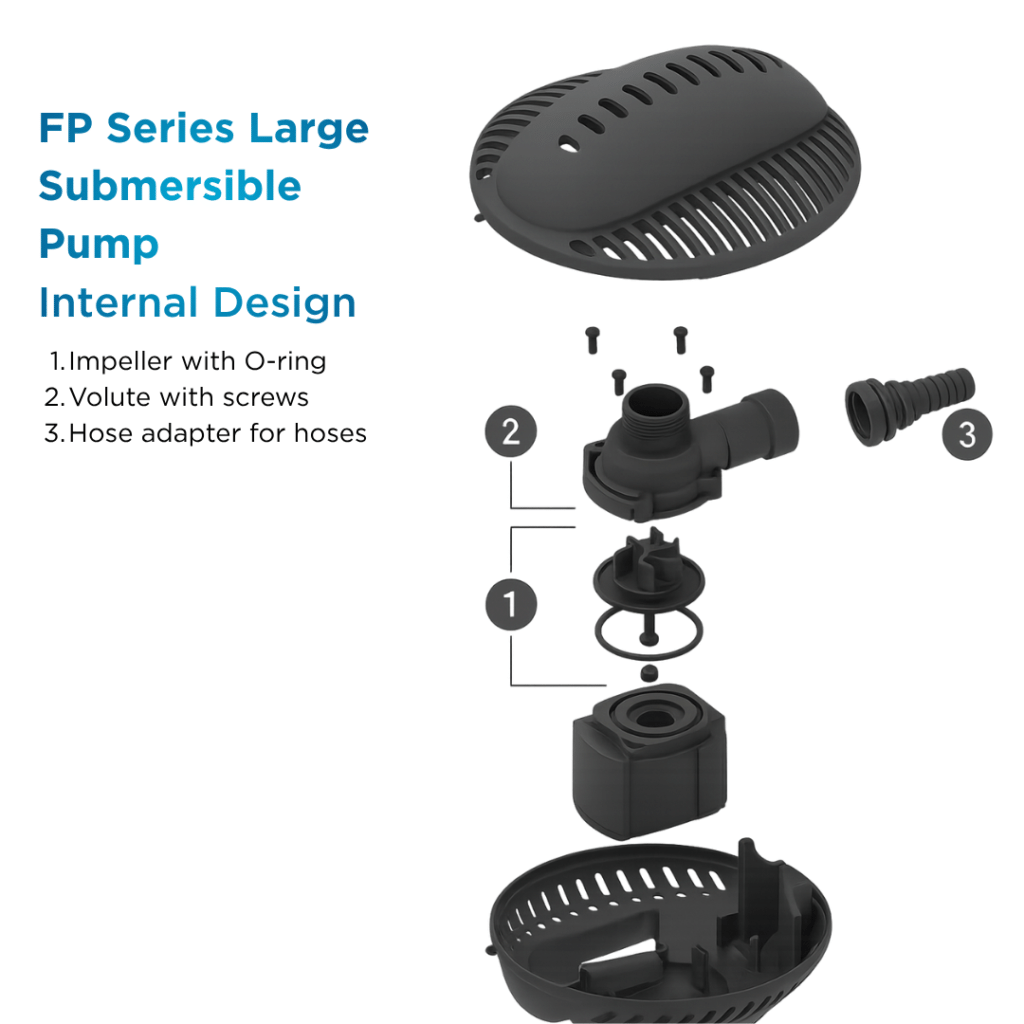

Rotating parts are designed to be accessed regularly for cleaning. The impeller is fitted with a wear-resistant ceramic shaft, although care should be taken during maintenance because the shaft is fragile. Regular cleaning of the intake and impeller helps maintain water flow and reliable pump performance.

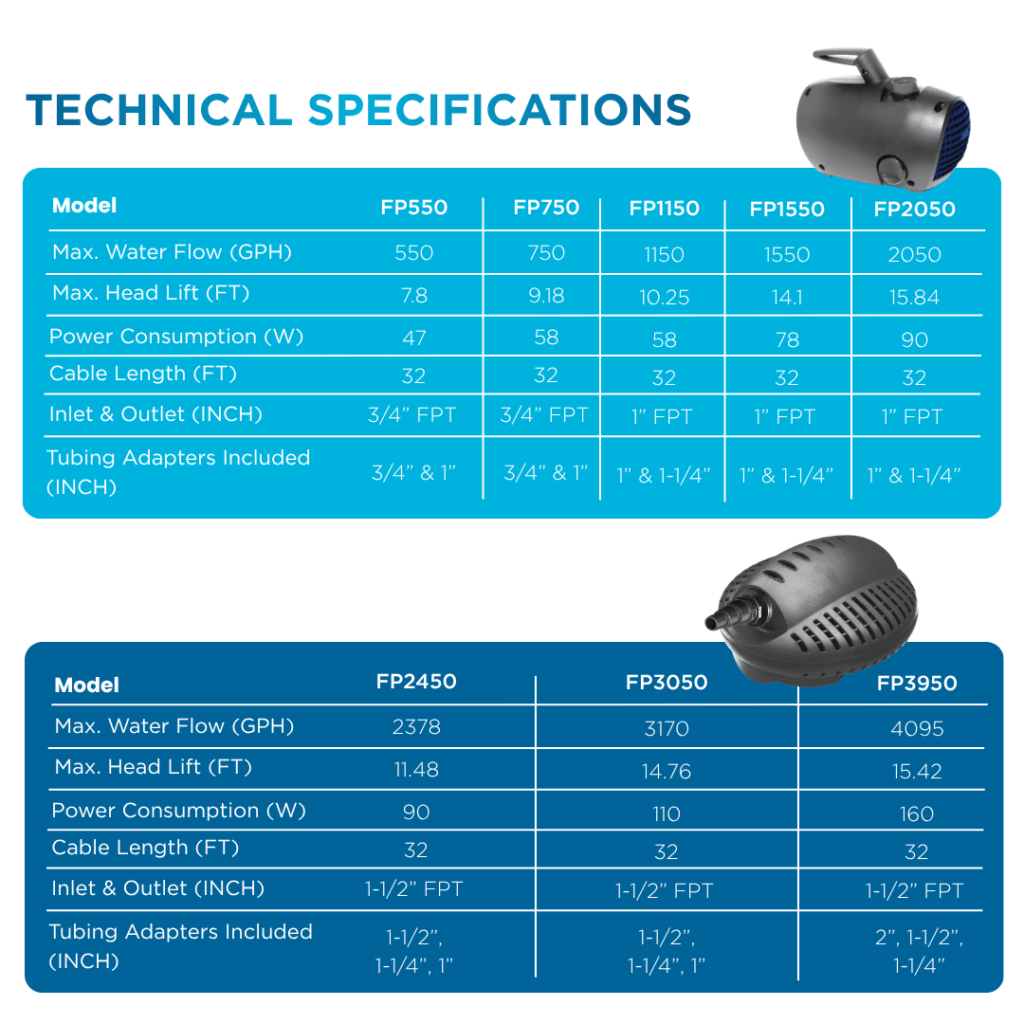

The FP Series is designed for freshwater use. Available in eight models from 550 to 3,950 GPH, the range provides multiple flow, head-height, outlet, and tubing-size options for pond filtration and water-feature installations. The series is backed by a 3-year manufacturer’s limited warranty.
