Product Details:
PondMAX EP Series Filtration & Waterfall Pump delivers energy-efficient water circulation for ponds, waterfalls, and filtration systems.
Featuring SMARTMAG™ motor protection, a clog-resistant impeller that handles debris up to 3/8 inch, and an optional adjustable auxiliary inlet for connecting a pond skimmer or secondary suction point, the EP Series combines reliable performance with flexible installation and easy maintenance.

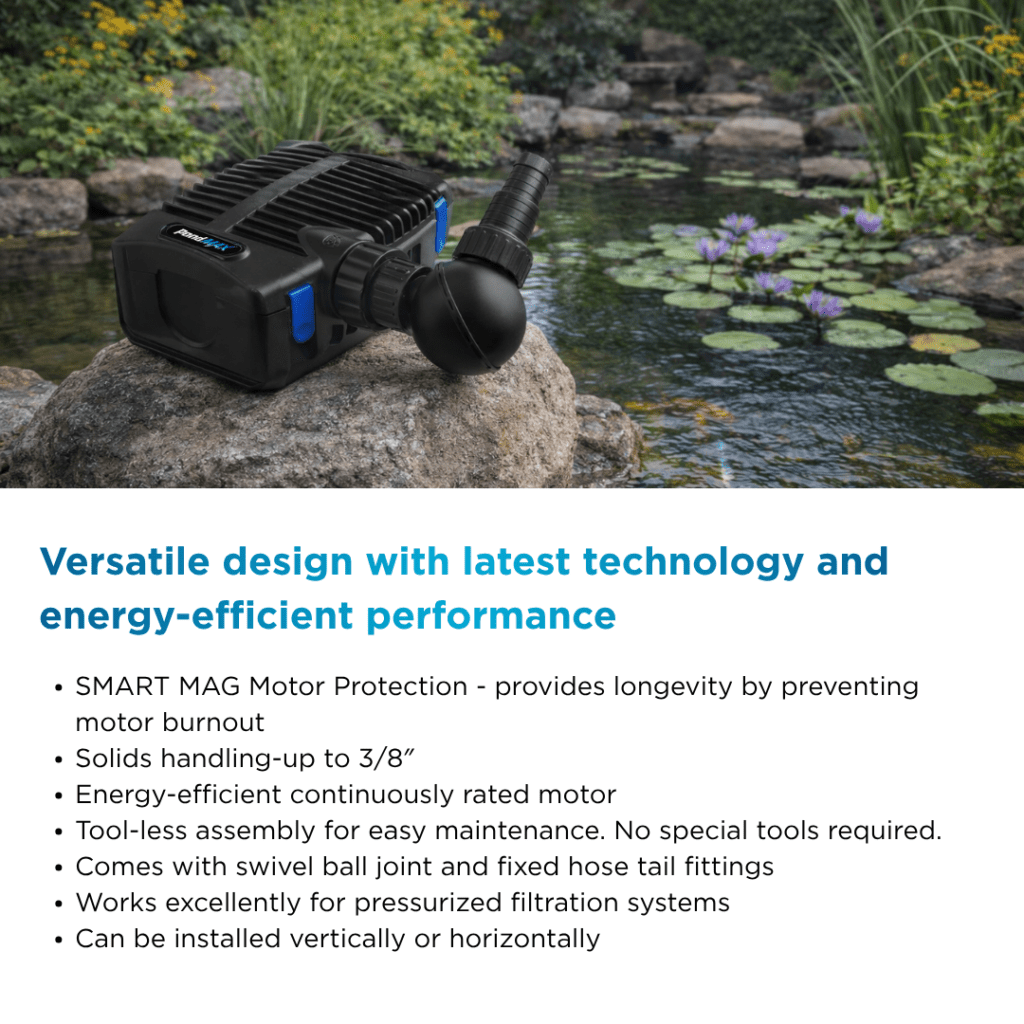

FEATURES
SMARTMAG™ motor protection — Detects a jammed impeller and interrupts power to help minimize motor burnout.
Energy-efficient operation — Provides water circulation with low power consumption.
Optional adjustable auxiliary inlet — Supports a compatible skimmer or second suction point to improve circulation and waste collection.
Solids handling up to 3/8 inch — Open-vane impeller helps debris pass through and resists clogging.
Quiet, low-vibration operation — Low noise rating and minimal mechanical vibration for a peaceful water garden.
Flexible underwater positioning — Install vertically or horizontally to suit the pond or water feature.
Tool-free maintenance with no special tools required
Versatile tubing connections — Stepped fittings accommodate a variety of tubing sizes.
Keep your pond water moving and your waterfall flowing with the PondMAX EP Series Filtration & Waterfall Pump. Designed for pond filtration systems, waterfalls, and water features, this energy-efficient submersible pond pump delivers continuous water circulation while helping move debris toward your filtration system.
The EP Series features an open-vane impeller that handles solid debris up to 3/8 inch in diameter, helping reduce clogging and routine maintenance. Its motor operates with low noise and minimal vibration, making it suitable for water gardens where dependable performance and quiet operation matter.
For added versatility, the optional adjustable auxiliary inlet allows you to connect a compatible pond skimmer or secondary suction point. This adds water circulation and waste collection, helping your filtration system pull debris from different areas of the pond.
Every EP Series pump features built-in SMARTMAG™ motor protection. The system provides a soft start and detects when the impeller becomes jammed. If a blockage occurs, SMARTMAG™ interrupts power for three seconds and attempts to restart the pump, repeating the procedure up to three times. If the obstruction remains, the pump enters a prolonged low-power state until it is switched off and maintenance is performed. This helps minimize the risk of motor burnout caused by a stalled impeller.

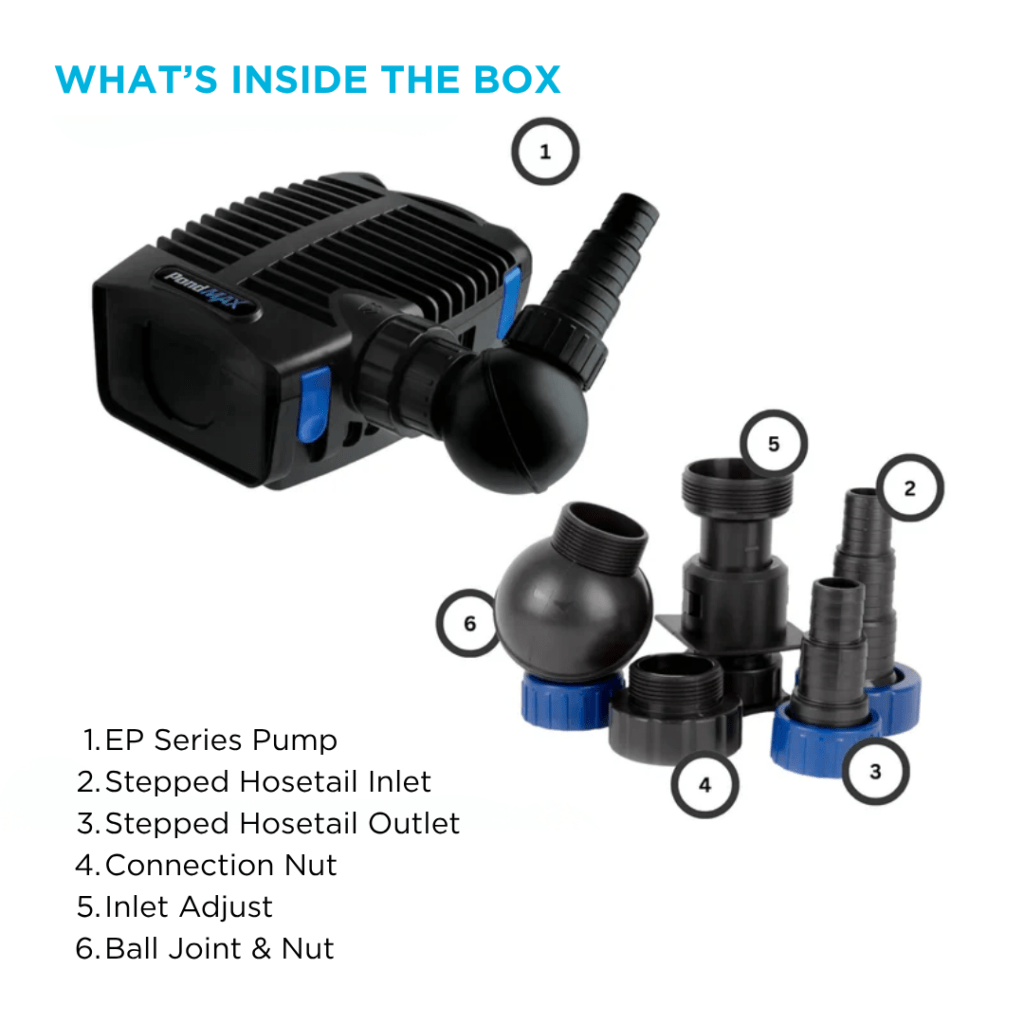

Designed for simple installation and maintenance, the EP Series can be positioned vertically or horizontally while fully submerged. Stepped hose fittings accommodate several tubing sizes, while the tool-free design and single moving impeller make routine cleaning straightforward.
The motor and electrical components are encapsulated in epoxy resin, and the water-cooled and water-lubricated bearing and shaft require no oil or grease. Rated for continuous duty, the EP Series is built to keep water circulating throughout your pond or water feature.

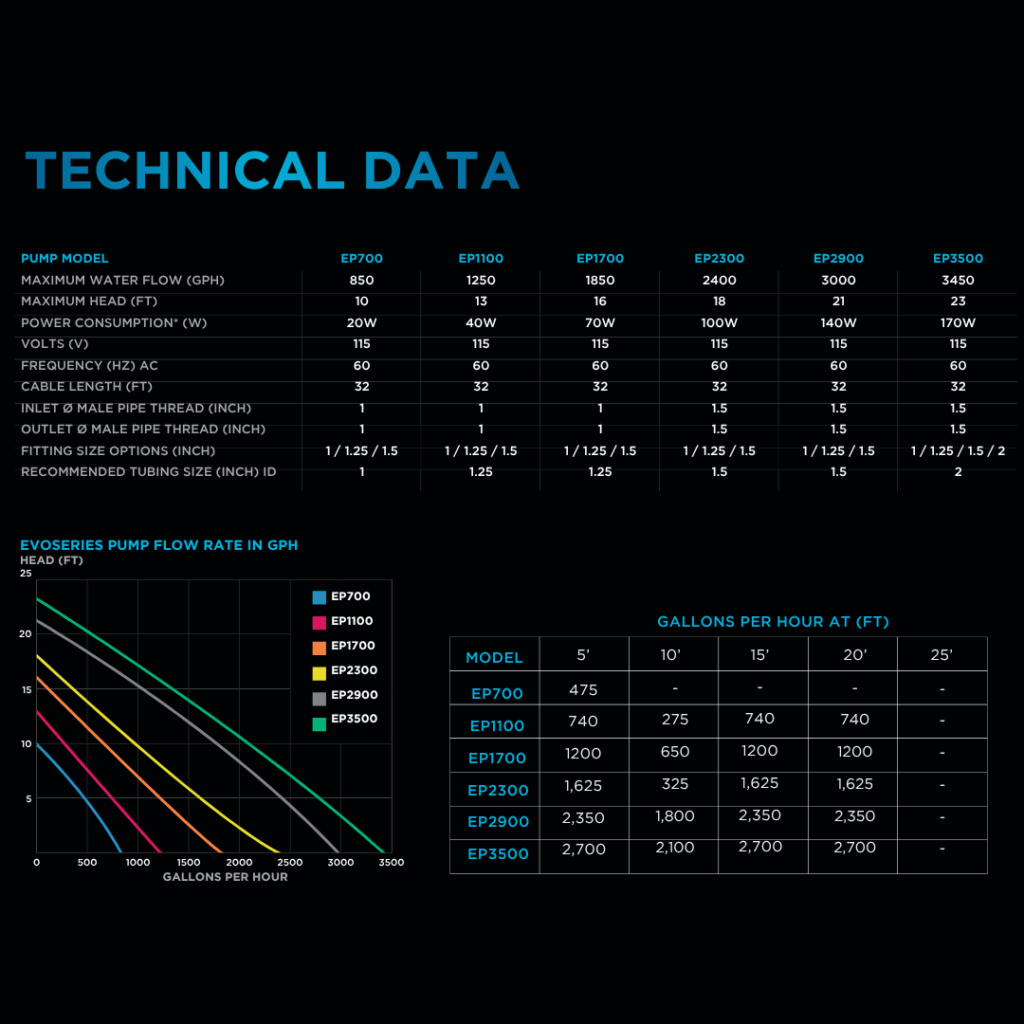

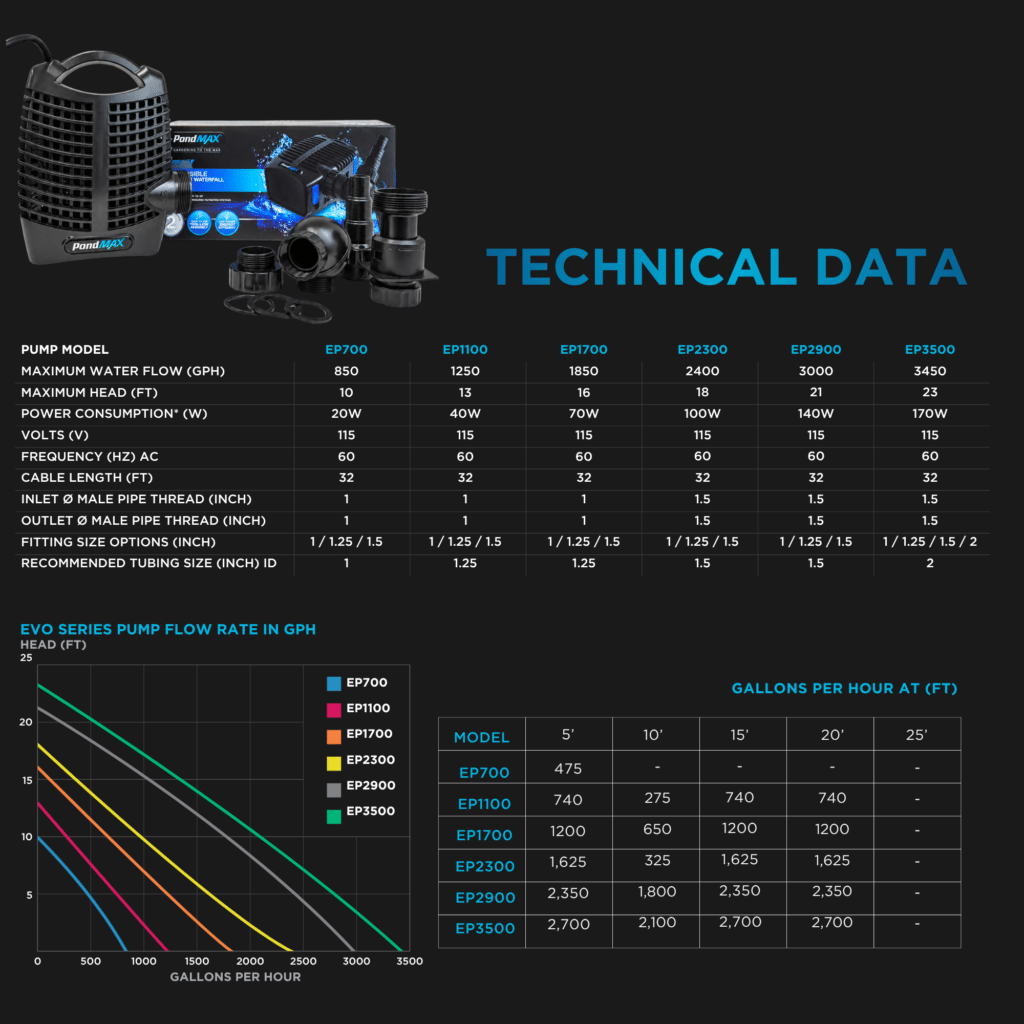

Available in six models with maximum flow rates from 850 to 3,450 GPH, the PondMAX EP Series offers options for pond filtration and waterfall applications.
